| 90° Long Radius Elbows |
|
Weld：3/8"～48"
Seamless：3/8"～12" |
|
|
|
|
|
| 90° Short Radius Elbows |
|
Weld：1"～48"
Seamless：1"～12" |
|
|
|
|
|
| 45° Long Radius Elbows |
|
Weld：3/8"～48"
Seamless：3/8"～12" |
|
|
|
|
|
| 90° Tube Elbows |
|
Weld：1"～6"
Seamless：1"～6" |
|
|
|
|
|
| Caps |
|
| Seamless：1/2"～24" |
|
|
|
|
| |
|
| |
|
| |
 |
| |
| ‧Introduction to “Branch Pipes” |
|
| |
The KaoJung Company Co., Ltd. is the professional manufacturer of stainless steel pipe fittings in Taiwan, having been devoted for many years to satisfying many industries’ needs for various pipe fittings and enhancing techniques and product quality. Our industry-leading branch pipes (See Figure 1, 2, 3) have been successfully and widely applied in semiconductor, optoelectronic, and bio-tech industries for the work efficiency and cost reduction. |
|
|
| |
| |
 |
|
| (Figure1) Branch Pipes |
|
|
 |
|
| (Figure2) Branch Pipes |
|
|
 |
|
| (Figure3) Branch Pipes |
|
|
|
|
| |
| ‧Why Branch Pipes? |
|
| |
The conventional pipe assembly method, the pipe insertion (See Figure 4), could form a right angle that creates the flow problem. Another assembly method, the welding of tees (See Figure 5), improves the flow problems but might be too costly to burden. Both of the two assembly methods above have two disadvantages — more chance of leakage and more X-ray inspection cost. Yet, our unique branch pipes, the substitution for the current pipe fittings, not only eliminate the number of welded joints to increase the assembly efficiency but also minimize X-ray inspection cost. Moreover, the directions and diameters of the outlets in branch pipes (See Figure 6) could be manufactured as customers require. Thus, more money and material could be saved. |
|
|
| |
| |
 |
|
| (Figure4) Insertion of Pipes |
|
|
 |
|
| (Figure5) The Welding of Tees |
|
|
 |
|
| (Figure6) Different Directions and Diameters of Branch Outlets |
|
|
|
|
| |
| ‧Technique Specifications |
|
| |

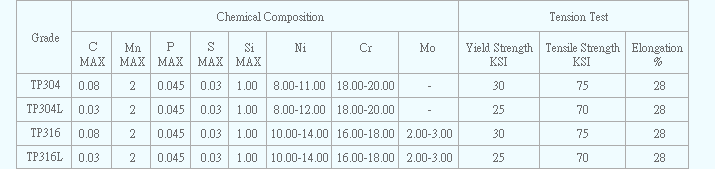

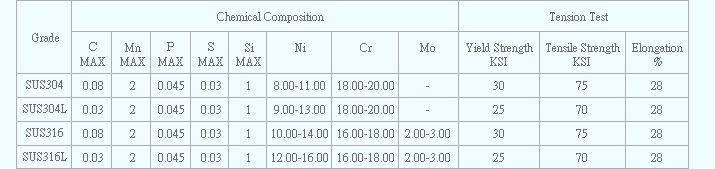

‧Material: Applicable in many materials including stainless, carbon, alloy steel, etc.
‧OD Range of Run Tube: 2” to 48”
‧Length of Run Tube: Depend on the requests of Customers
‧Outside Diameter of Outlets: 1/2” to 36”
‧Height of Outlets: Trimmed to the desired height, from 10mm~25mm
‧Wall thickness: Min. 2mm. Max. 20mm. |
|
|
|
| |
|
|
| |
|
| |

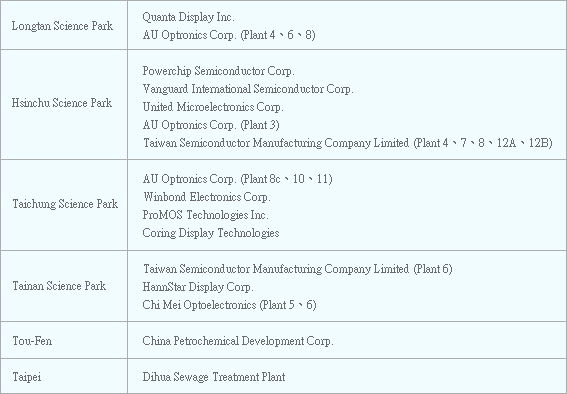

| ‧Our Customers |
|
|
|
|
|
| |
|
|
|
|
 |
|
